20A-160A 3 In 1 Mini MIG Welder

Product Categories
Dongguan Jone Welding Technology Co., Ltd.
Contact Now

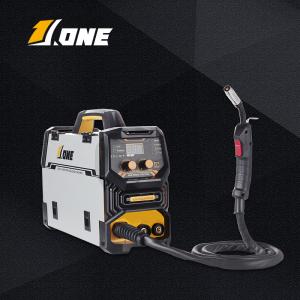

20A-160A 3 In 1 Mini MIG Welder

Brand Name : JONE

Model Number : MIG/MMA/TIG-160A

Certification : CE

Place of Origin : GUANGDONG,CHINA

MOQ : 500

Payment Terms : T/T, L/C

Supply Ability : 70000 PCS per /month

Delivery Time : 4 WEEKS

Packaging Details : CARTON

Price : Negotiate

Type : IGBT <1KG ,Gasless

AC Input Power Capacity(KVA) : 220V

Input Frequency(Hz) : 50/60

Output current range(A) : 20-160

Rated Duty Cycle(%) : 60%

Input power cable(m) : 1.8

N.W./G.W.(kg) : 7.4/9.2

Accessories : holder、clamp、2M Build-in Torch mask、brush、manual

Condition : New

Machine Size(L*W*H) : 420*160*310 MM

Contact Now

20A-160A 3 In 1 Mini MIG Welder with CE certification High Productivity

MIG welding is a low cost, quick and safe method of joining sheet metals such as mild steel and Aluminum. MIG welding combines a wire feed to feed solid filler wire to the weld joint. The wire feed is connected to a constant voltage power supply that creates the arc to melt the wire when it hits the weld joint. Before the wire creates an arc there needs to be a shielding gas feed through the system.

MIG welding is an autodidactic process, meaning you can learn it yourself. First you need to decide whether you prefer stick or flux cored welding. Stick is the best for small weld jobs because the filler metal does not act as a shield against heat, making it easy to weld. Flux-cored wire requires shielding gas which makes it difficult and tight to fit into smaller spaces. Welding with flux core requires a much more complicated operation than sticking, but it does produce quality results even on less-than-perfect surfaces because welding with flux core creates a positive shielded arc that melts the wire tip and starts the weld process

20A-160A 3 In 1 Mini MIG Welder

Model MIG/MMA/TIG-160A
Type IGBT≤ 1kg, Gasless
AC Input Voltage(V) 220V (110V can do)
Rated Input Power Capacity(KVA) 5
Input Frequency(Hz) 50/60
Non-load Voltage(V) 68
Output current range(A) 20-160
Rated Duty Cycle(%) 60%
Efficiency(%) 85%
Class of Insulation F
Protection class of case IP21
Wire diameter(mm) 0.8/1.0
Wire weight(kg) ≤ 1kg
Quick joint Size(mm) 10-25
Input power cable(m) 1.8
N.W./G.W.(kg) 7.4/9.2
Machine Size(LxWxH mm) 420*160*310
Package(LxWxH mm)/ 8 in 1 455*270*355 kraft paper box
Accessories 1.8M 16mm2 200A holder
1.2M 16mm2 300A clamp
2m Build-in Torch
Brush, Mask, Manual

20A-160A 3 In 1 Mini MIG Welder

20A-160A 3 In 1 Mini MIG Welder

20A-160A 3 In 1 Mini MIG Welder

20A-160A 3 In 1 Mini MIG Welder
